Steel Cord Conveyor Belt
Application:
- Used in coal, ore, port, metallurgical, power and chemical industries, suitable for long distance and heavy load transportation of materials.
- Standards offered: GB/T9770, DIN22131, EN ISO 15236, SANS1366 and AS1333.
- Cover Compounds: General, Fire-resistant, Cold-resistant, Abrasion-resistant, Heat-resistant and Chemical-resistant.
Steel cord structure:
K6X7+IWS K6X19+IWS K6X19W+IWS

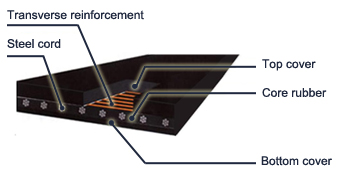

Belt Structures:

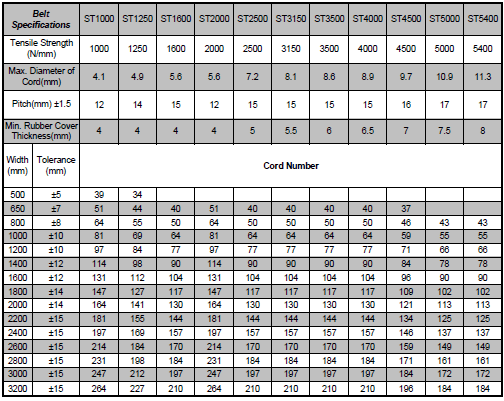

Referenced Belt Specifications
Click here to download the Referenced Belt Specifications (PDF, 131KB, updated)
ST Belt Splice
Splice dimensions as per DIN 22131
| ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | |
| Minimum step length (mm) | 300 | 350 | 450 | 400 | 500 |
| Splice length (mm) | 600 | 650 | 750 | 1150 | 1350 |
| ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | |
| Minimum step length (mm) | 650 | 650 | 750 | 800 | 900 |
| Splice length (mm) | 1650 | 2350 | 2650 | 2800 | 4050 |
Splice Configurations

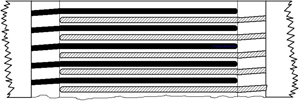

One-step splice (up to ST 2000)

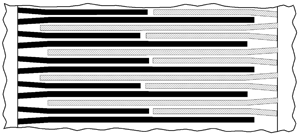

Two-step splice (ST2500 to ST3150)

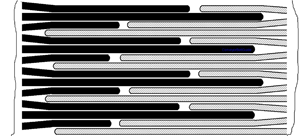

Three-step splice (ST3500 to ST4500)

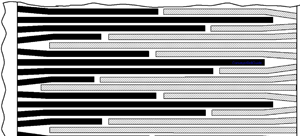

Four-step splice (ST5000 to ST7500)
