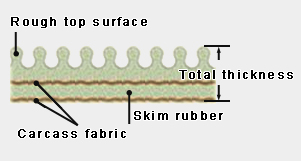

Construction:
2 or 3 ply construction with cut edges and carcass of EP fabric.
The surface texture resists the tendency for the material to roll back down the conveyor.
Features:
- The top cover is made of wear-resistant rubber with a non-slip surface. It has cushioning effect, mollifies and absorbs vibrations and impacts given on transported materials and simultaneously prevents slippings.
- Available with bottom cover or bare back for slider bed applications.
- Although it depends on the transported materials, transportation at inclination angles 25 ~ 30 is feasible.
Application:
Rough top conveyor belt is used for transporting light weight goods, such as sacks, boxes and parcels, on inclined surface at angles of maximal 35 degree.
Specification:
| Edge |
No. of ply |
Top cover |
Bottom cover |
| C/E |
2 |
1/8" (3.2 mm) |
1/16" (1.6 mm) |
| C/E |
2 |
1/8" (3.2 mm) |
Bare back |
| C/E |
3 |
1/8" (3.2 mm) |
1/16" (1.6 mm) |
| C/E |
3 |
1/8" (3.2 mm) |
Bare back
|
|
