Sealing Conveyor Belt
Application:

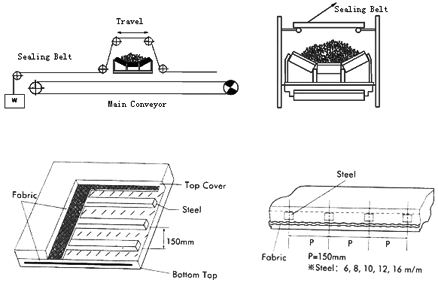

Sealing belt is used as protection cover for unloading conveyor, reproducing machine and other unloading material equipment.
- Due to reinforced material,the belt is cross rigid and can withstand 100kgs weighty man or object wothout deforming. Longitudinal direction is soft and easy to be moved according to application needs
- It prevents materials to be conveyed from dust, wind rain and sunlight.
Specifications
| Width (mm) | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 |
| Max. pitch between fulcrums (mm) |
400-500 | 650-700 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 |
| Embedded plate | Steel Cord Fabric | Steel Cable Square Bar | ||||||
| Material of cover rubber | Black, Anti-aging Rubber | |||||||
| Min. pulley dia. (mm) | 300 | 300 | 300 | 400 | 400 | 400 | 400 | 400 |
