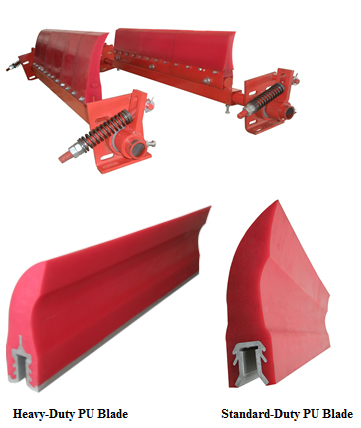

Primary PU Belt Cleaner:
Applications:
- Belt Width: 500~2000mm
- Belt Speed: ≤3.5(m/s)
- Temperature: -40~90°C
- Material Humidity: ≤15%
Detailed Models:
| Model |
Belt Width |
Blade Width |
Pole Legnth |
Blade Height |
| (mm) |
L(mm) |
A (mm) |
H (mm) |
| 50 |
500 |
500 |
1400 |
182 |
| 65 |
650 |
650 |
1600 |
182 |
| 80 |
800 |
800 |
1800 |
182 |
| 100 |
1000 |
1000 |
2000 |
182 |
| 120 |
1200 |
1200 |
2200 |
182 |
| 140 |
1400 |
1400 |
2400 |
182 |
| 160 |
1600 |
1600 |
2600 |
182 |
| 180 |
1800 |
1800 |
2800 |
182 |
| 200 |
2000 |
2000 |
3000 |
182 |

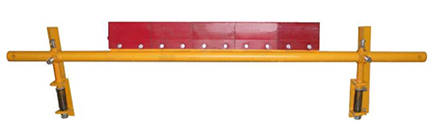

Secondary PU Belt Cleaner
S-PU Secondary Polyurethane Belt Cleaner can be mounted in any secondary cleaning position -- usually about 100mm from where the belt leaves the head pulley.
The secondary cleaner, used together with the primary cleaner, has a self-adjusting spring tensioner system to maintain close contact with the belt without damaging the belt and achieve good cleaning results.

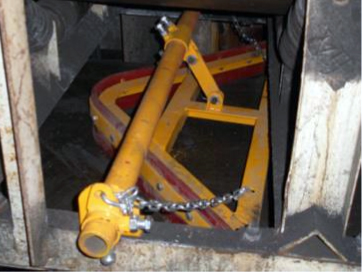

V-Plough Belt Cleaner (Return Belt Cleaner)
Features:
- Special polyurethane blade.
- Low friction coefficient.
- Anti-corrosion.
- Without damaging the belt.
- Simple structure.
- Easy-to-maintenance.

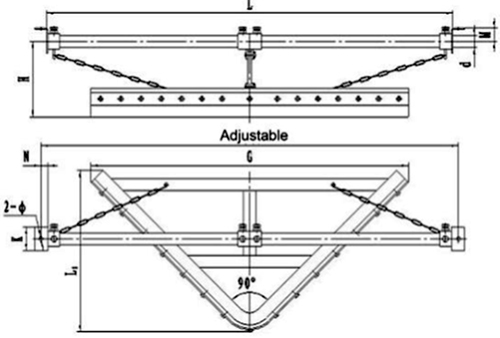

Detailed Specifications:
| Model |
Belt Width |
L1
(mm) |
Pole Length
L (mm) |
H
(mm) |
M
(mm) |
d
(mm) |
Weight |
| (mm) |
(Kg) |
| V-P-50 |
500 |
322 |
1000 |
315 |
55 |
50 |
20 |
| V-P-65 |
650 |
395 |
1100 |
315 |
55 |
50 |
24 |
| V-P-80 |
800 |
460 |
1300 |
315 |
55 |
50 |
28 |
| V-P-100 |
1000 |
566 |
1500 |
315 |
55 |
50 |
38 |
| V-P-120 |
1200 |
672 |
1700 |
315 |
55 |
50 |
44 |
| V-P-140 |
1400 |
772 |
1900 |
315 |
55 |
50 |
48 |
| V-P-160 |
1600 |
866 |
2100 |
368 |
70 |
60 |
54 |
| V-P-180 |
1800 |
972 |
2300 |
368 |
70 |
60 |
58 |
| V-P-200 |
2000 |
1072 |
2500 |
368 |
70 |
60 |
65 |

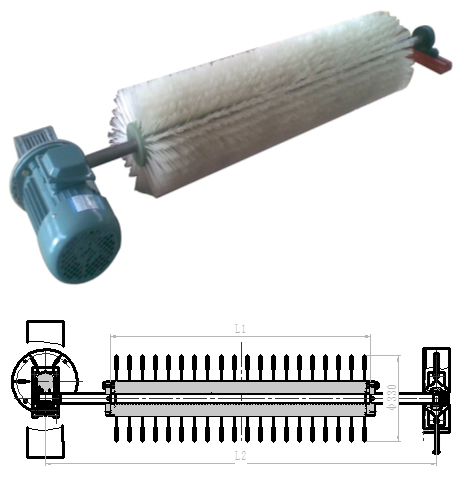

Motorized Brush Belt Cleaner
Application:
- Belt Width:650~1400(mm)
- Material humidity: ≤5%
- Applicable for patterned belt or flat face conveyor belt.
|
