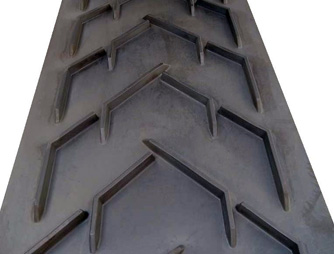

Chevron Conveyor Belt
Application:
- Chevron conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees.
Features:
- Anti-slip;
- Cleats and top cover rubber are vulcanized integrally;
- Cleat pattern, angle and pitch are designed elaborately.
Selections:
Selection of a type and height of cleats depends on the material to be conveyed and the angle of inclination:
| Type of material | Material example | Max. angle of inclination | |||
|---|---|---|---|---|---|
| Height of cleats | |||||
| H(mm): 14 |
H(mm): 16 |
H(mm): 25 |
H(mm): 32 |
||
| Powdery | Flour, etc. | 25° | 25° | 28° | 30° |
| Loose flowing | Corn, barley, wheat, rye, etc. | 20/25° | 20/25° | 25/30° | 25/30° |
| Loose rolling | Gravel, ground stone, etc. | 25° | 25° | 28° | 30° |
| Sticky | Wet sand, ash, wet loam, etc. | 30° | 30/35° | 35/40° | 40/45° |
| Packed | Sacks, paper sacks, etc. | 30/35° | 30/35° | 35/40° | 35/40° |
Cleat pattern ranges

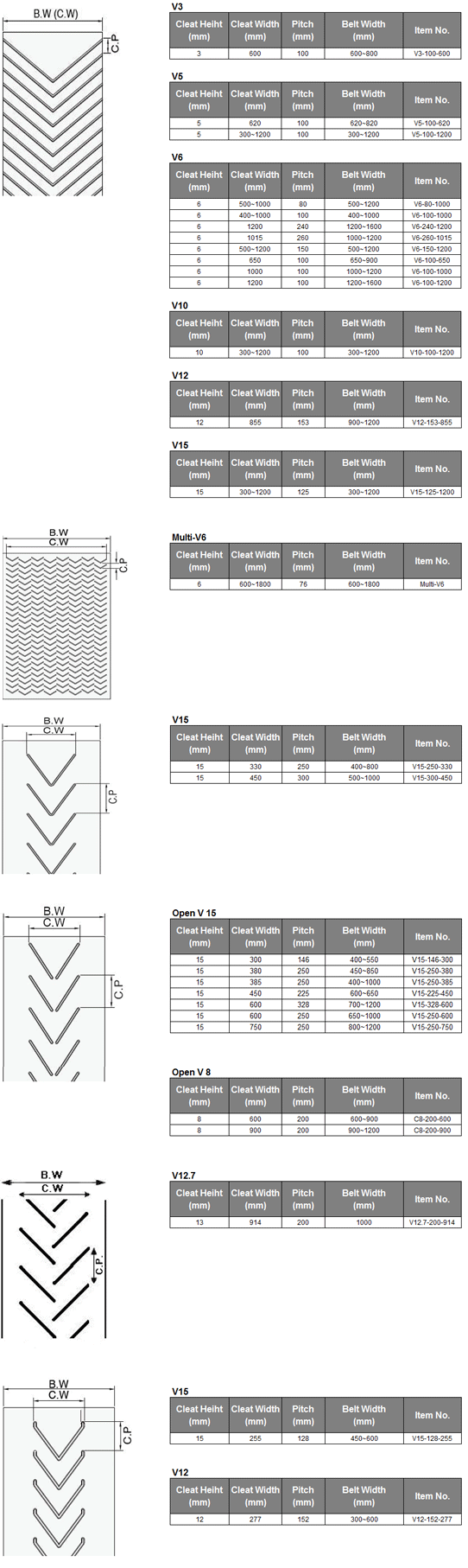

1. Conveyor belts with Close V type profiles

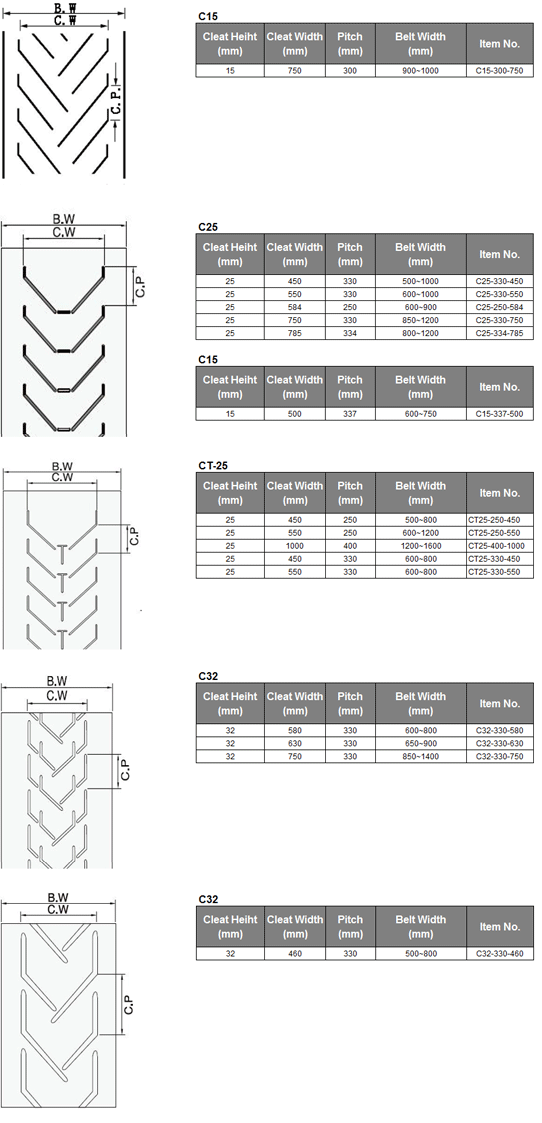

2.Conveyor belts with C type profiles

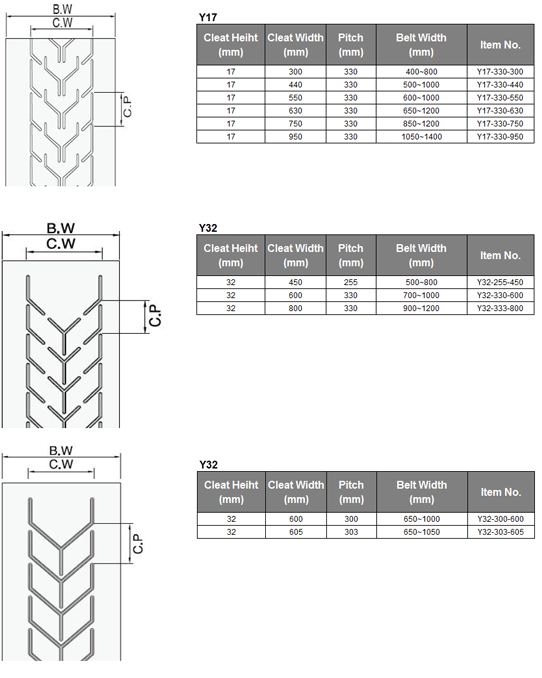

3.Conveyor belts with Y type profiles

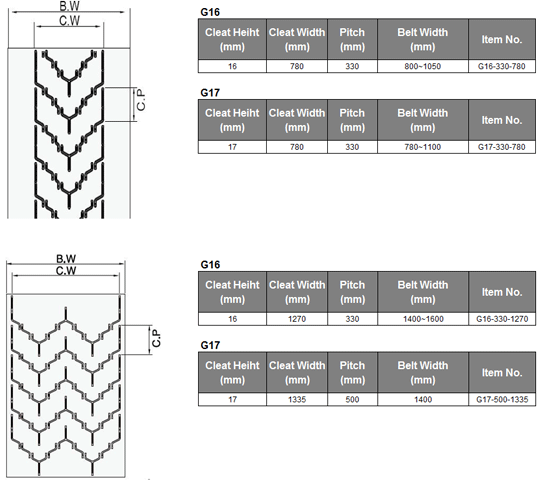

4.Conveyor belts with G type profiles
