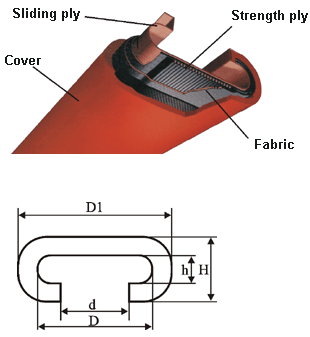

Structure and Dimensions:
| Escalator Type |
Height (mm) |
Width (mm) |
| H |
h |
D1 |
D |
d |
| SWE |
34(±1) |
12 |
82(±2) |
62(±2) |
33(+3/-1) |
| OTIS |
35.5(±1) |
15.9(±0.5) |
82.5(+1.5/-0.5) |
63.5(±0.5) |
38(+1.6) |
| XF |
33(±1) |
14 |
82(±2) |
64 |
35(+2) |
| SDG |
32(±1) |
12 |
86(±2) |
62(±2) |
36(+2/-1) |
| SDS |
28.5(±1.5) |
10.6(±0.8) |
80(+3/-1) |
62(+3) |
39(+3) |
| J |
27 |
10 |
80 |
62(+3) |
41(±1.5) |
| OTIS-800 |
28(±1) |
9.5(±0.5) |
76(-2) |
60(-2) |
39(+2) |
| Hitachi |
27.5 |
10(±1) |
80(+1/-0.5) |
63(+1.5) |
40(±1) |
| Hyundai |
28.4(±0.7) |
10.4(±0.7) |
79.3(±0.7) |
63.5(±0.7) |
39.6(+1.5/-0.7) |
| LG |
31.7(±1) |
11.5(±1) |
82(±1.5) |
63(+1.5) |
40(+1.5) |
| FT-300 |
35(±1) |
15(±1) |
88(+4/-2) |
68(-2) |
40(+3/-1)
|
