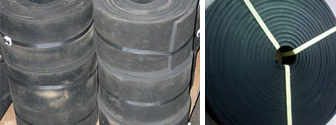

Skirting Rubber

Description:

Skirting rubber is a general purpose rubber used mainly in the mining industry as a side skirt on conveyor belt systems to prevent the materials falling down. It is available in full width slabs up to 2000 mm wide and also pre-cut skirting strips.

STD 60 Duro

A general purpose grade of natural rubber used for many quarrying and mining applications in dust and spillage control.

Soft 35-40 Duro

A softer grade natural rubber, with good tensile and elongations properties, it is ideally suited for conveyor skirting applications where belting wear is of concern. The rubber is also used where a flexible, but abrasive resistant seal is required.

Tensile strength: Min16Mpa
Density: 1.05g/cc
Hardness: 35±5 shore A
Elongation: Min 500%
Abrasion: Max110mm3



Specification:

Width: 76 -- 2,000 mm
Thickness: 2 -- 50 mm
Roll length: 3 -- 30 m
